• Air conditioning, single-zone manual
• Assist handle, front passenger
• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers
• Defogger, side windows
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)
• Headliner, cloth, over driver and passenger
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches
• Oil life monitor
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Tow/haul mode selector, instrument panel-mounted
• Trim panels, hinged rear side doors and hinged rear doors
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, full-length box ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear wheel drive
• Steering, power
• Suspension, rear hypoid drive axle with multi-leaf springs

• Air bag deactivation switch, frontal, passenger-side (Requires (C6P) 8600 lbs. (3901 kg) GVWR or (C6Y) 9600 lbs. (4354 kg) GVWR. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Door beams, steel-side
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitoring System (does not apply to spare tires)

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM

• head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive tow/haul mode and internal transmission oil cooler (STD)

TIRE, SPARE LT245/75R16E ALL-SEASON, BLACKWALL

• located at rear underbody of vehicle (STD)

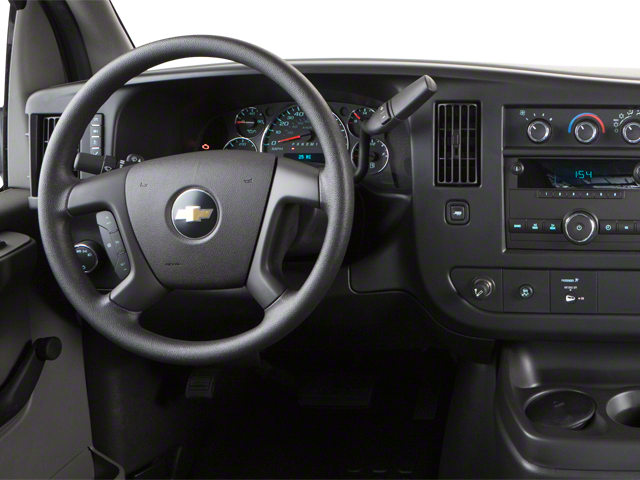

STEERING COLUMN, TILT

• Tilt-steering column without cruise control.

BACKUP ALARM, 97 DECIBELS

• Rear frame mounted back-up alarm

BODY, STANDARD

• (STD)

PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

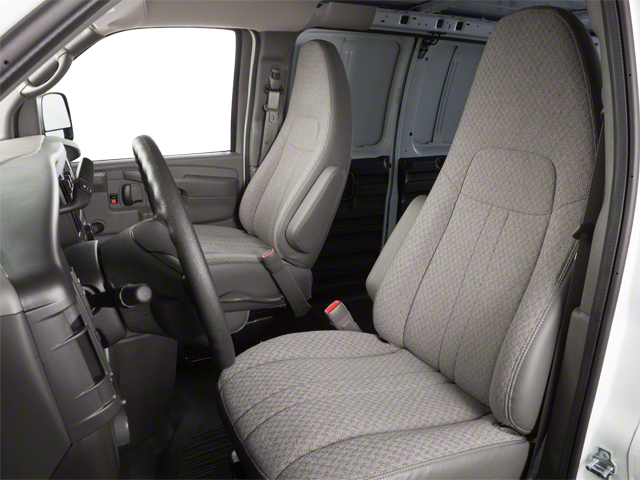

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS

• with head restraints and vinyl or cloth trim (STD)

ENGINE, VORTEC 4.8L V8 SFI FLEXFUEL

• (280 hp [208.8 kW] @ 5200 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler.

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

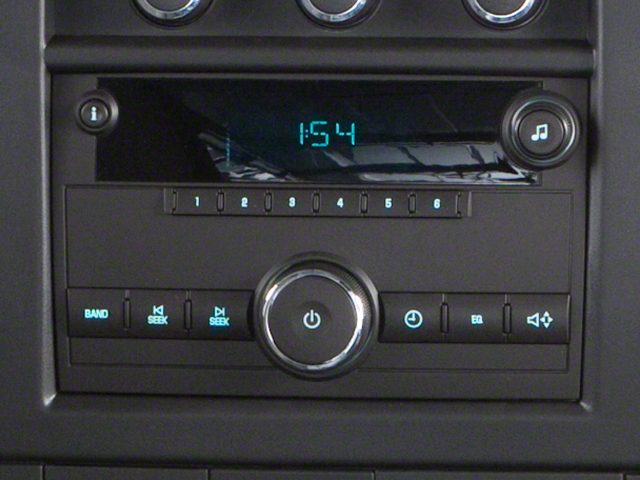

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select and 2 front door speakers

DOOR, SLIDING PASSENGER-SIDE

• (Includes trim panel standard on sliding door only.

• Preferred Equipment Group 1
• 3.42 Rear Axle Ratio
• 16" x 6.5" Steel Wheels
• Reclining High-Back Front Bucket Seats
• Reclining Front Bucket Seats
• Custom Vinyl Seat Trim
• AM/FM Stereo w/CD Player

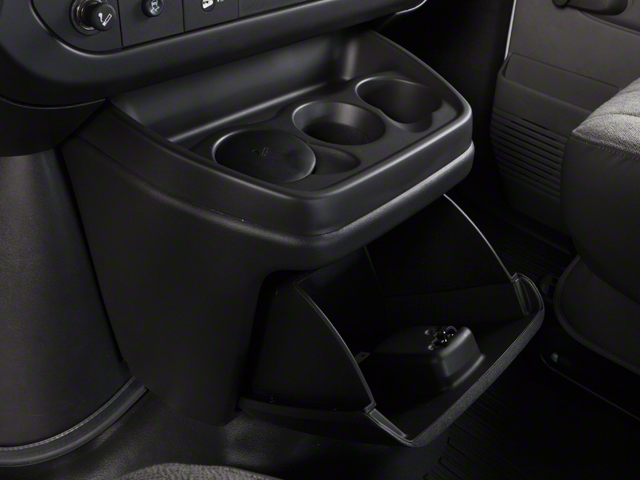

• Engine Cover Console w/Swing-Out Storage Bin
• Sliding Passenger-Side Door
• Fixed Rear & Side Cargo Door Glass
• Fixed Rear Door Window Glass
• Inside Rear-View Manual Day/Night Mirror
• Sliding Door Trim Panel
• 4-Wheel Disc Brakes
• Driver's Seat Mounted Armrest
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Power steering
• Passenger seat mounted armrest
• Passenger door bin
• Passenger cancellable airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.)
• REAR AXLE 3.42 RATIO
• NEUTRAL CUSTOM CLOTH SEAT TRIM
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive tow/haul mode and internal transmission oil cooler (STD)
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL located at rear underbody of vehicle (STD)
• STEERING COLUMN TILT Tilt-steering column without cruise control.
• BACKUP ALARM 97 DECIBELS Rear frame mounted back-up alarm
• BODY STANDARD (STD)
• PREFERRED EQUIPMENT GROUP includes Standard Equipment
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO LEGGETT AND PLATT/MASTERACK.
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS with head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• ENGINE VORTEC 4.8L V8 SFI FLEXFUEL (280 hp [208.8 kW] @ 5200 rpm 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler.
• GLASS FIXED REAR DOORS AND SIDE CARGO DOORS
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• GLASS FIXED REAR DOORS WINDOWS
• SUMMIT WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER seek-and-scan digital clock TheftLock random select and 2 front door speakers
• CONSOLE ENGINE COVER WITH SWING-OUT STORAGE BIN
• DOOR SLIDING PASSENGER-SIDE (Includes trim panel standard on sliding door only.
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Immobilizer
• Power Outlet
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2915
• Curb Weight - Rear (lbs): 2291
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1110
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Sliding
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 81.5
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.8
• Ground Clearance, Front (in): 8.8
• Ground Clearance, Rear (in): 7.7
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.3
• Step Up Height - Side (in): 20.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 124.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 52.9
• Cargo Volume (ft³): 270.4
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 39.8
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary
• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: 3500 Cargo Van 135" WB
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
